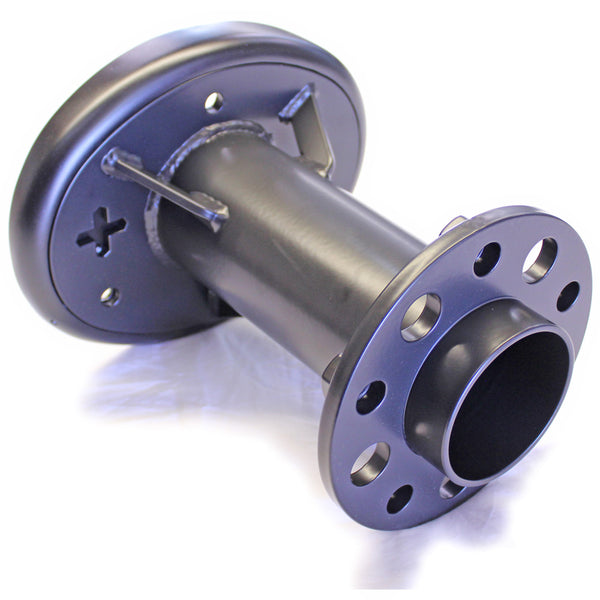

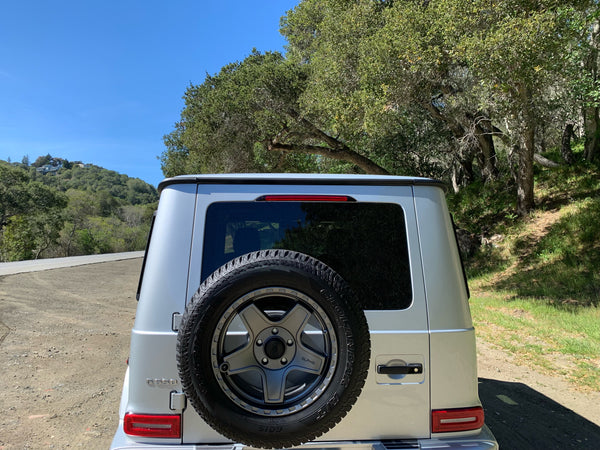

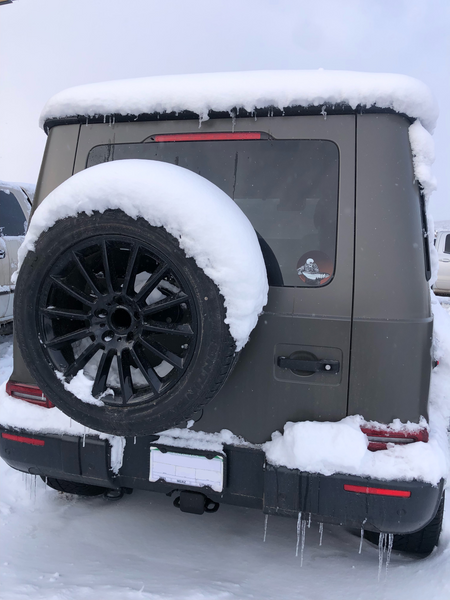

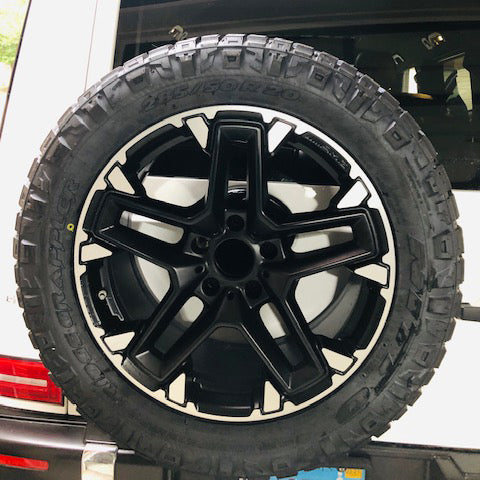

The 911 Reverse Spare Mount for W463A models 2019 and newer supports the weight of larger spare tires and orients the spare wheel to face outwards. No longer will you be held back by the metal spare cover limiting tire sizes or have to drive around with your spare facing inward. This is a rugged tire carrier that holds those big beefy off road tires just right.

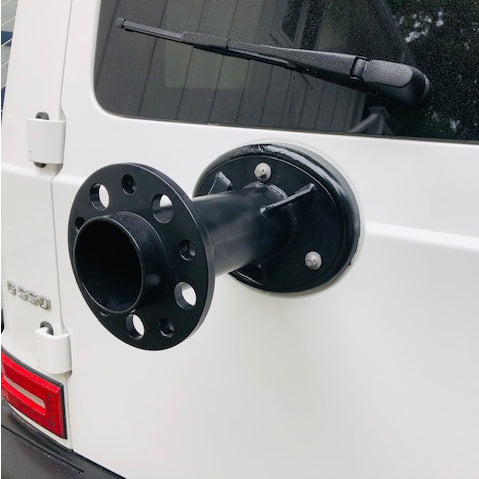

This mount is similar to 911 Motorsports previous design, except Mercedes had to make it interesting with an oval door mount. The base has been 3D printed which gets sandwiched in between the flip mount and seals against the door like the factory mount, which gives a smooth clean look. The base is made from PETG, then sanded, primed and painted. Drain slots have also been incorporated in the base for water run off.
Find your back spacing:

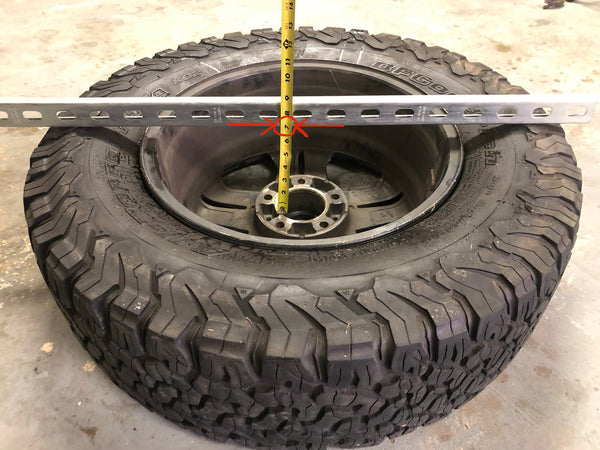

Using a straight edge, measure from the inside face of the tire (the face that will sit closest to the G) to the inside face of the wheel hub on your rim. *Diagram in pictures. For most accurate results, have the tire installed on the wheel and aired up* The flip mount ranges will give your tire 1/2" to 1" clearance to the door. Example, if your backspace measures 7" and you choose the 6.5-7" length, then your tire will be 1/2" from the door at the tightest point.
Common backspacing (these can vary)
6.5"-7" - Stock wheel/tires
7"-7.5" - A little wider, up to 285 wide tires
7.5"-8" - A lot wider, up to 305 or 12.5" tires
A reference chart of wheel offset and tire size to backspace measurement is being configured as more are sold, if you have questions on this, feel free to email us and we will walk you through everything.
Includes 5 OEM wheel bolts and an external Torx bit to install mount.
