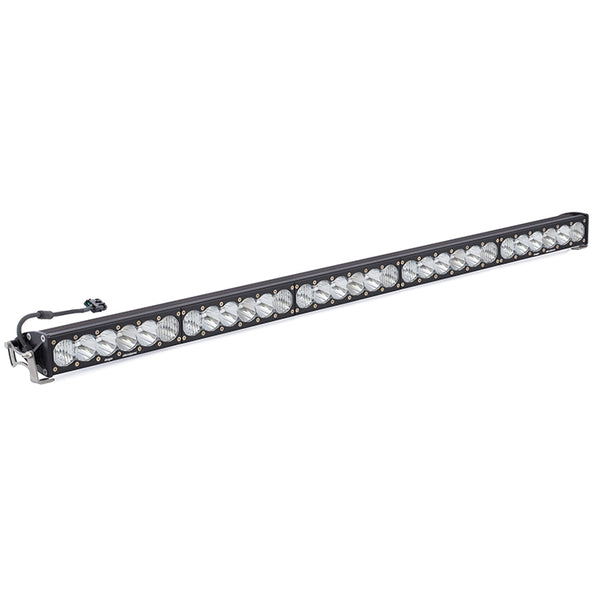

G Wagon 50 inch Baja Designs OnX6+ Clear LED Light Bar

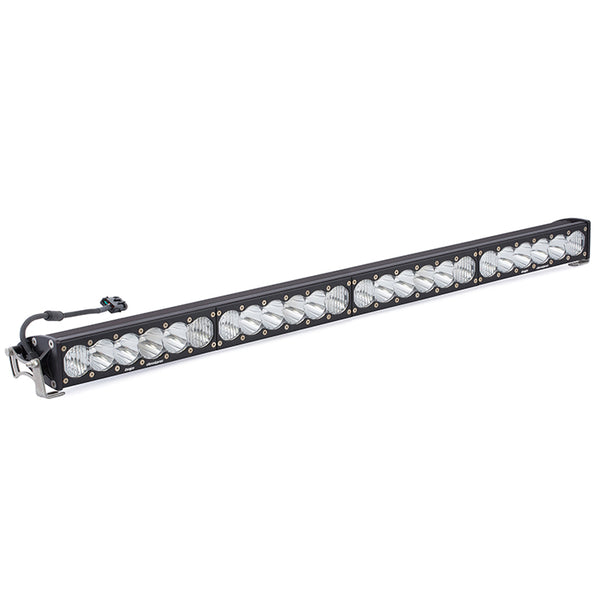

40 inch Baja Designs OnX6+ Clear LED Light Bar

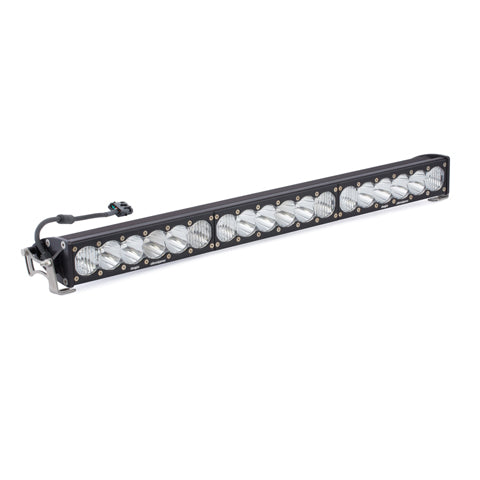

30 inch Baja Designs OnX6+ Clear LED Light Bar

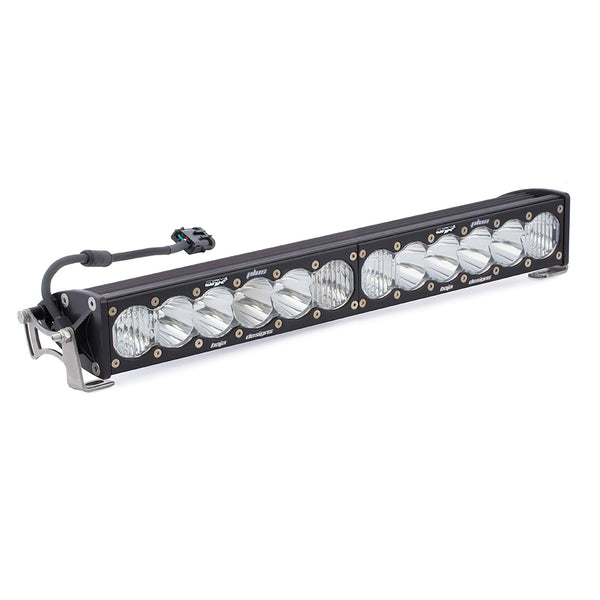

20 inch Baja Designs OnX6+ Clear LED Light Bar

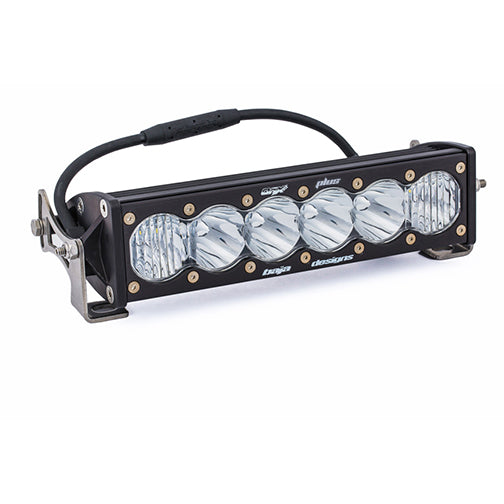

10 inch Baja Designs OnX6+ Clear LED Light Bar

Baja Designs OnX6+ Clear LED Light Bar (10-50 inch)

Regular price $1,596.00 Sale

THIS ITEM SHIPS FREE TO THE LOWER 48 STATES

For inquiries outside the lower 48, please contact us for a shipping quote at JackWagonOverlanding@gmail.com

The Baja Designs OnX6+ LED light bar integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by the Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

This bar is equipped with BMT – Battery Management Technology
-Elimination of Flickering at Low Voltage
-Added Protection to Vehicle Wiring and Systems
-Protection from Dangerous Current Spikes

Optional Wiring Harness is a 2-light max wiring harness. If ordering two of these lights, it is only necessary to order one wiring harness.

Specifications:
Lumens:
10": (High) 12,460 (Low) 9,230 Utilizing 6 LEDs
20": (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs
30": (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
40": (High) 38,900  (Low) 32,440 Utilizing 24 Cree LEDs
50": 39,430 Utilizing 30 Cree LEDs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
