THIS ITEM SHIPS FREE WITHIN THE UNITED STATES.
**For inquiries/orders outside the USA, please contact us for a shipping quote at JackWagonOverlanding@gmail.com to complete your order**
These wheels only fit the Mercedes W463 4x4 Squared, 6x6, and non AMG G Wagons equipped with portal axles which accept an 8x6.5 bolt pattern. If your G Wagon does not have portal axles or the portal axles installed have a 5x130 bolt pattern, these will not fit the wheel hub without an adapter. If your G Wagon has the AMG brake calipers, these will not fit without an adapter. NOTE that the W463A G63 4x4 Squared has the AMG brake calipers so these will not fit. Please contact us with any questions.
Lead times may vary. If not in stock, lead time could be several months. Please contact us to confirm availability.

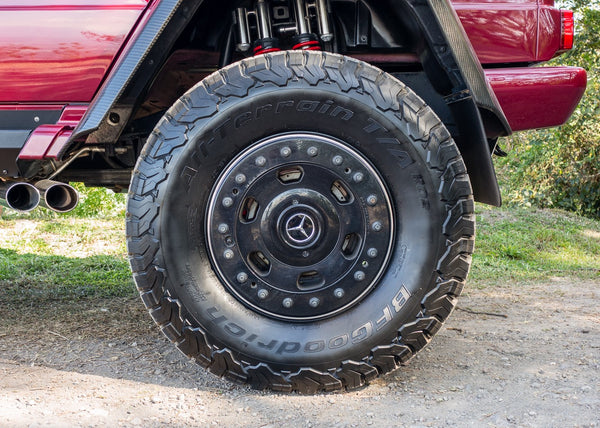

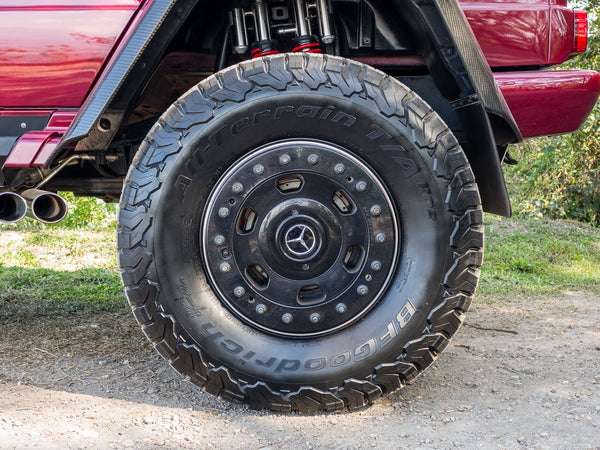

This is the Mercedes OEM 18" Cast Aluminum, DOT compliant, street legal, military grade Rock Monster double beadlock wheel designed by Hutchinson Industries specifically for the Mercedes W463 4x4 Squared. Not just a show piece, the internal double beadlock system gives you the best of both worlds because it delivers unparalleled traction and safety while operating off-road, in a design that is street legal.
Capable of airing down to single digit psi without risk of de-beading the tires, these are the most functional and capable wheels on the market for the 4x4 squared. These wheels are CTIS ready with the necessary port to add air lines to seamlessly air up and down without ever leaving your truck. *CTIS system sold separately. A plug is included to fill this port if CTIS is not being installed.
Purchase includes the inner/outer wheel, o-ring, hub cover, valve stem, TPMS sensor bracket, CTIS plug, rubber beadlock, locking nuts, and nut/bolt covers. No special tools required. Wheels are painted in gloss black. Standard MB center caps will fit - not included in purchase.
DETAILS:
Rim Size: 18 x 8.5
Offset: 2.165 in [55.0 mm]
Bolt Pattern: 8 x 6.5 in [165.1 mm] B.C.D.
Hub Bore: Ø4.806 in [122.1 mm]
Load Rating: 4080 lb @ 50 psi [1850.7 kg @ 3.45 bar]
Weight: 47.5 lb [21.5 kg]
