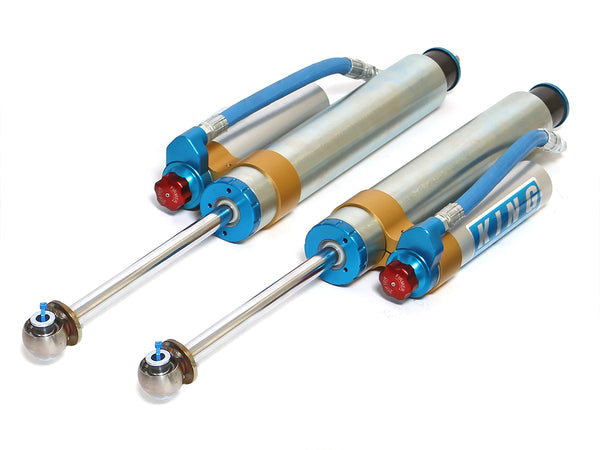

G Wagon King Shocks 2.5 inch diameter piggyback reservoir silver blue

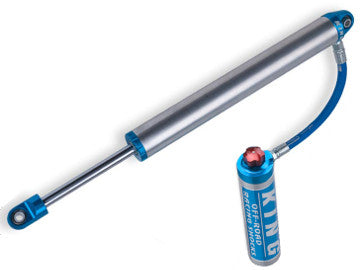

G Wagon King Shocks 2.5 inch diameter remote reservoir silver blue
G Wagon King Shocks 2.5 inch diameter piggyback reservoir silver black
G Wagon King Shocks 2.5 inch diameter remote reservoir silver black
  • Load image into Gallery viewer, king shocks g wagon lift kit g550 g55 g500 g63
  • Load image into Gallery viewer, G Wagon King Shocks 2.5 inch diameter piggyback reservoir silver blue
  • Load image into Gallery viewer, G Wagon King Shocks 2.5 inch diameter remote reservoir silver blue
  • Load image into Gallery viewer, G Wagon King Shocks 2.5 inch diameter piggyback reservoir silver black
  • Load image into Gallery viewer, G Wagon King Shocks 2.5 inch diameter remote reservoir silver black

King 2.5 Adjustable Shocks

Regular price
$2,775.00
Sale price
$2,775.00
Regular price
Coming Soon!
Unit price
per

THIS ITEM SHIPS FREE WITHIN THE UNITED STATES.

**For inquiries/orders outside the USA, please contact us for a shipping quote at JackWagonOverlanding@gmail.com to complete your order**

As of April 2022, current lead time is 19-23 weeks if not in stock. Please reach out to us for availability.

*Updated May 2022: 2013-2018 G550 (non-AMG) models and all models 2012 and older only require minor trimming of the wheel well to fit. 2013-2018 G63 (AMG) models will require that the front driver top secondary bracket on the frame of the G is cut off to fit these shocks. If you have a G550, G500, or G55 AMG, only slight modification is required. If you have a G63, you will have to cut a bracket off entirely to fit. It has been long standing thought that this was necessary on all 2013-2018 models but after further investigation, only the G63 requires the serious modification.

*Shocks come in silver/black for the G- blue option is a stock photo

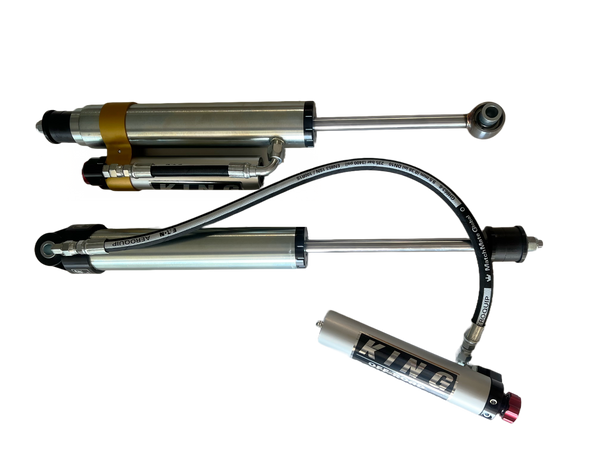

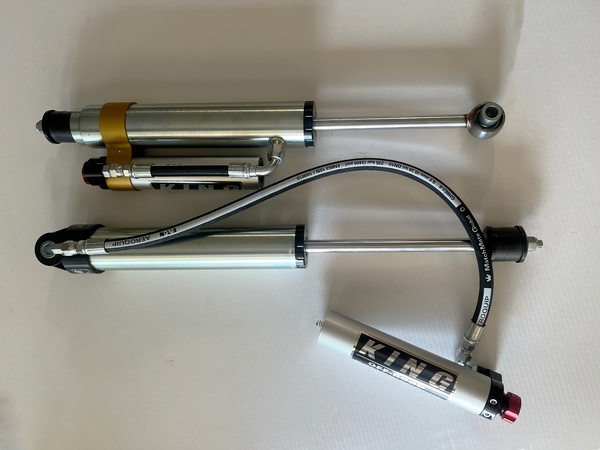

Compatible with factory ride height to 4 inch (100mm) lifted Gs! The adjustable King shocks feature a remote reservoir front shock setup and a piggyback rear shock setup. The rear shocks have the bronze clamp around the shocks to complete the "piggyback" setup. Front shocks do not have it. The rear shocks are direct bolt on. The front shocks feature a remote reservoir which must be installed either to the skid plate or in the wheel well and may require trimming the wheel well to properly run the remote reservoir hose. Professional installation recommended. Detailed pdf instructions can be provided.

King Shock Reservoir Measurements:
2.5" Outer Diameter
2.2" Inner Bore
Rubber bushing to center of eye length measurements (extension --> compression):
2013 and Newer Fronts: 25 3/8" --> 15 7/8"
2012 and Older Fronts: 24" --> 15 5/8"
Universal Rears: 25 3/8" --> 17"

Because of the face lift on the 2013 Gs, it is necessary to select between the 1990-2012 option and the 2013+ option. The rear shocks are universal but the front shocks vary between the two time frames. Kit not yet available for 2019+ models.
